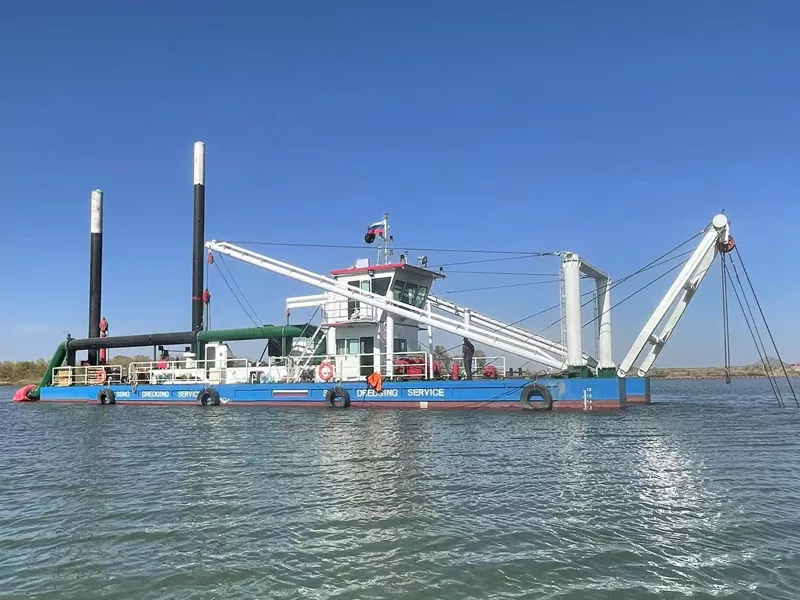

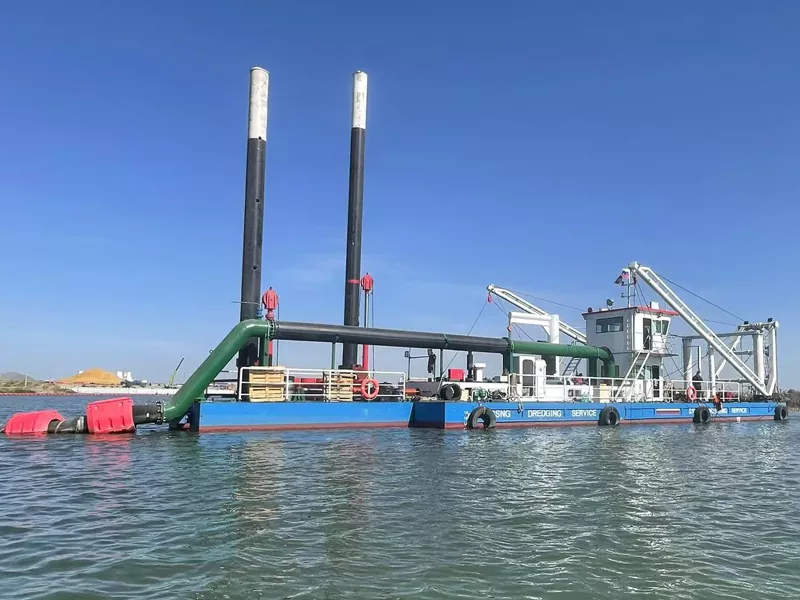

Electric Powered Dredger

Name: Electric Powered Dredger
SKU: 0

As the global industry shifts toward sustainable energy, Qingzhou City Dingke Dredger Equipment Co., Ltd. leads the way with our advanced Electric Powered Dredger. Engineered specifically for calm inland rivers and protected reservoir areas, this all-electric suction dredger eliminates the need for diesel fuel, providing a zero-emission solution for environmental desilting.

Contact information

Phone：+8615963694335

 WhatsApp/Wechat：+8615963694335

Email：dkjx@chinadingke.com

Inquiry Now →

PRODUCT DESCRIPTION

Driven by high-performance marine motors, our Electric Powered Dredger delivers a steady 1200m³/h water flow with a significantly lower noise profile. Verified by ISO9001 and BV, Dingke Dredger's electric series is the premier choice for operators seeking to reduce carbon footprints while maximizing long-term investment returns.

Core technical specifications

Key Metric	Technical Specification (Electric Model)	Component / Feature
Main Motor Power	~185 kW Marine Grade	High-Efficiency Electrical Drive
Water Flow Rate	1200 m³/h	250PNS-35 Slurry Pump
Dredging Depth	10 Meters (at 50° angle)	Optimized Suction Head
Jet Pump Power	30 kW (4-inch)	For Enhanced Solid Concentration
Solid Productivity	120 - 240 m³/h (Theoretical)	10% - 20% Concentration Ratio
Discharge Distance	≥ 500 Meters	Consistent Pumping Pressure
Hull Protection	3-Layer Marine Anti-Corrosive Paint	Primer + Middle + Finish Coat
Maneuverability	4-Winch Lateral Swing System	Precision Positioning Control

Many drinking water reservoirs and urban eco-parks strictly prohibit diesel-powered vessels due to oil leak risks. The Electric Powered Dredger is the ideal solution, providing powerful jet-suction performance without the threat of water contamination. It allows for continuous maintenance of dam capacity while adhering to the strictest environmental regulations.

By replacing diesel with electricity, operators can save up to 40%-60% in energy costs depending on local utility rates. Furthermore, electric motors require significantly less maintenance than complex internal combustion engines—no oil changes, no fuel filters, and fewer moving parts mean more hours of active dredging per year.

Dredging in residential or noise-sensitive areas is often restricted to daylight hours. The whisper-quiet operation of our electric dredging units allows for extended working schedules, including night shifts, without disturbing local communities, thus accelerating project completion timelines.

FAQ

Q： How does Dingke Dredger ensure the durability and wear resistance of its equipment in abrasive conditions?

A：

Abrasion is the primary challenge in dredging. We combat it through material science and intelligent design. Our dredge pumps are lined with extra-high-chrome (Cr27) alloy, offering 5-8 times the lifespan of standard materials. Cutter heads are fitted with replaceable teeth made from specially forged alloys. Critical pipeline elbows feature wear-resistant ceramic linings. Furthermore, our operational software includes wear monitoring algorithms, advising on optimal pump speeds and mixture densities to minimize component stress and maximize service intervals.

Q： What environmental considerations are integrated into Dingke Dredger ships?

A：

Modern dredging must be environmentally responsible. Dingke vessels incorporate several key features. Eco-friendly Cutter Heads are designed to minimize sediment plume creation, protecting water quality. Precision GPS and DGPS Systems allow for accurate excavation, preventing over-dredging and disturbance of surrounding areas. For projects involving contaminated sediments, we can integrate closed-loop systems and water treatment modules. Our engines comply with the latest IMO Tier II and Tier III emission standards, reducing air pollution.

Q： Can a dredger ship operate in shallow or confined waters?

A：

Absolutely. This is a common requirement for river restoration or inland lake projects. Dingke designs specialized amphibious dredgers and spud-leg CSDs with a minimal draft. These vessels can operate effectively in waters as shallow as 1-2 meters. For confined spaces, we offer compact, modular dredgers that can be disassembled for transport overland and reassembled on-site. Their maneuverability is enhanced with azimuth thrusters or winch systems.
