How Draft Limits Shape Port and Harbor Dredging Vessel Selection

Draft limits are often treated as a simple access constraint: if the dredger can float in the available water depth, it can work. In Port and Harbor Dredging, that assumption causes expensive problems. A vessel may technically enter a basin at high tide yet lose safe clearance during cargo loading, fuel consumption changes, wave action, turning, or relocation between work areas. It may reach the dredging site but be unable to position its spuds, swing its ladder, discharge material efficiently, or leave the harbor under its own operating condition.

The real question is not “What is the dredger’s draft?” It is “What draft will the complete operating system require throughout the project?” That system includes the hull, pumps, ladder or excavation equipment, spuds, anchors, pontoons, discharge pipeline, workboats, fuel and consumables, and, in some projects, accommodation or auxiliary power arrangements. Selecting a vessel around the nominal water depth alone is one of the fastest ways to create a workable-looking plan that fails in the field.

For harbor maintenance, berth deepening, channel widening, and basin expansion, draft limitations affect vessel dimensions, installed power, dredging method, transport strategy, and construction schedule. They also determine where compromises are acceptable and where they are not.

Draft Is an Operating Condition, Not a Catalogue Number

A published light draft is useful for preliminary screening, but it is rarely the figure that should govern final selection. The working draft can rise when fuel tanks are full, spare parts and tooling are loaded, suction or discharge equipment is carried onboard, or dredged material is retained in a hopper. A dredger can also trim differently as consumables are used or as equipment is moved. These changes matter most in shallow berths, narrow approach channels, enclosed marinas, and tidal ports where the available margin is already limited.

Project teams should separate at least four water-depth references before discussing vessel size:

• the charted or surveyed depth at the access route;
• the actual depth at the working position, including local high spots and sedimentation;
• the water level expected during the working window, rather than the best possible tide; and
• the clearance needed for safe maneuvering, hull movement, squat, and reasonable operational uncertainty.

The last point deserves more attention than it often receives. Vessel squat, which is the increase in draft or sinkage associated with movement through water, can be relevant during transit in confined channels. Passing traffic, propeller wash, wind setup, short-period waves, and changing bottom conditions can also reduce the practical margin. The exact allowance depends on the vessel, speed, local conditions, and port rules, so it should be confirmed through the project’s navigation and operating review rather than copied from another site.

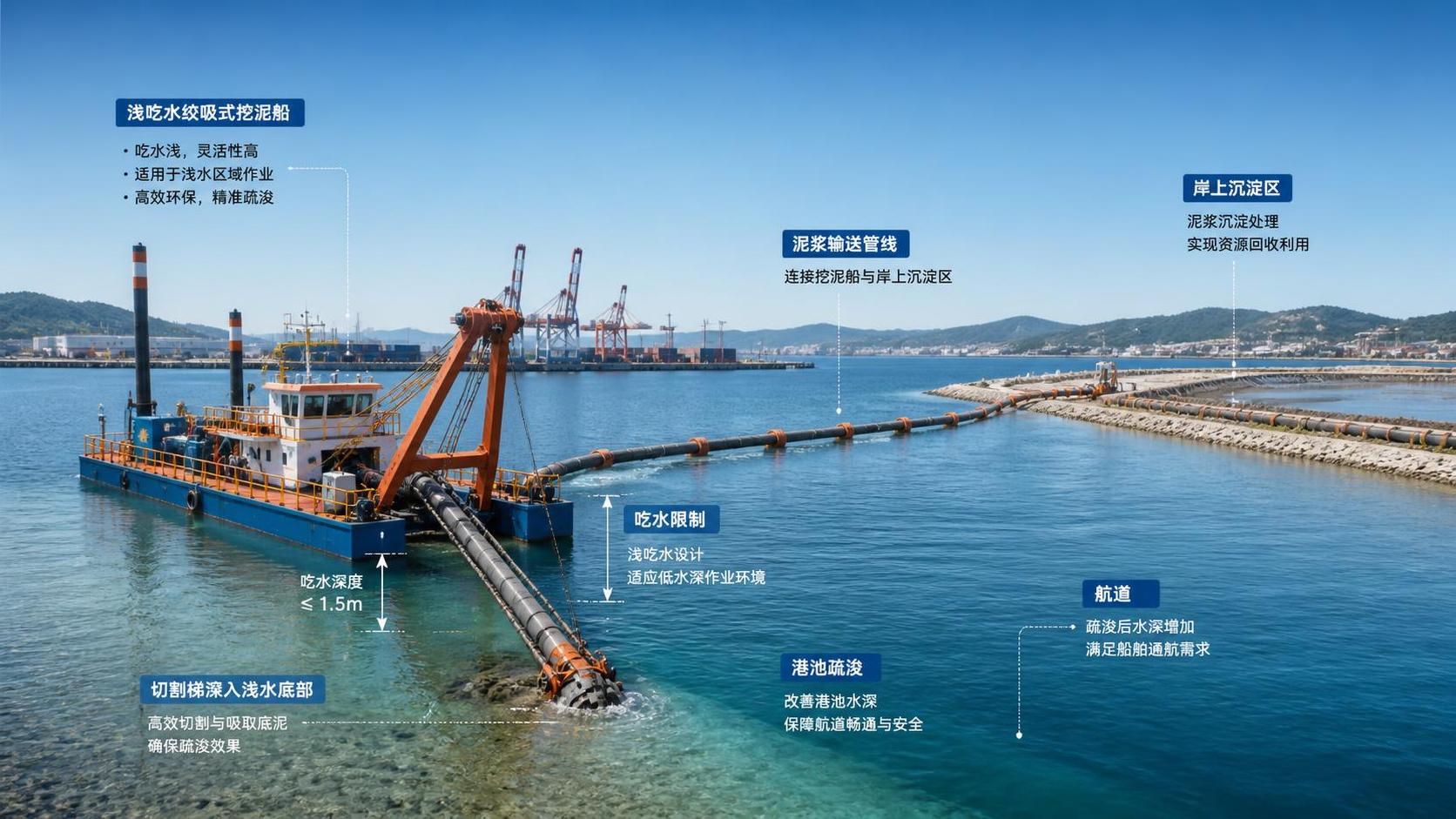

There is another frequent source of confusion: dredging depth and vessel draft are different constraints. A cutter suction dredger may be capable of reaching a substantial excavation depth through its ladder geometry while its hull remains in relatively shallow water. Conversely, a dredger with a deep hull may have ample pumping capacity but be unable to access the berth where the work begins. The excavation target does not automatically tell you what vessel can physically operate there.

Why a Larger Dredger Is Not Always the Productive Choice

A larger dredger may offer more installed power, a bigger pump, greater cutter capability, or more onboard capacity. Those advantages are real when soil conditions, discharge distance, production targets, and access depth support them. But in draft-restricted harbor work, oversizing can turn those advantages into idle time.

Consider a maintenance campaign in a shallow turning basin. A heavy vessel may require tidal access, reducing the usable shift length. Its larger turning circle can complicate movement around dolphins, quay walls, moored vessels, or navigation aids. If it must wait for water before shifting to another cut, nominal production capacity becomes less relevant than actual hours spent cutting and pumping. A smaller, shallower-draft unit that remains safely afloat through a longer window may complete the work more predictably, even if its peak hourly output is lower.

This is especially true when work is fragmented. Small berths, marina entrances, slipways, bridge-adjacent reaches, and older port basins may require repeated relocations. Each relocation introduces time for anchor handling, spud movement, pipeline adjustment, safety checks, and traffic coordination. In such cases, maneuverability and setup time can carry nearly as much weight as pump size.

The opposite mistake is selecting the shallowest and smallest vessel without testing the hydraulic duty. A very light platform may enter the site easily but struggle with compacted sediment, debris, long discharge lines, or a required production rate. A dredger should not be chosen simply because it fits; it has to fit while still delivering the required excavation and transport performance.

The Dredging Method Changes the Draft Discussion

Different dredging methods place different demands on water depth. The most suitable vessel type is driven by material behavior, disposal or reuse route, site geometry, marine traffic, and environmental controls as well as draft.

A cutter suction arrangement is often attractive where material can be pumped directly to reclamation, containment, or another approved receiving area. Yet the shallow-water benefit of the hull does not eliminate the need to examine pipeline behavior. Floating pipeline, shore crossings, booster locations, and discharge pressure all affect the workable layout. In a busy port, the route may need to avoid navigation lanes or remain removable at short notice. That operational reality can influence the vessel decision as much as draft does.

Where material must be carried away by water, hopper capacity has obvious appeal. However, the loaded draft may restrict when and where the vessel can sail. If the harbor entrance or disposal route is shallow, the apparent efficiency of collecting more material per cycle can be offset by limited sailing windows. It is better to model the full cycle—digging, loading, transit, disposal, return, and waiting—than to compare vessels only by hopper size.

Look Beyond the Dredger Hull

A dredging vessel is only one part of the spread. Many draft-limited projects are constrained by the support equipment rather than the primary dredger. Tugboats may need more water than the work platform. A fuel barge may not reach the operating position. A crane barge used for pipeline handling may be unable to enter an inner basin. Even the transport vessel delivering components can become a bottleneck if a dredger has to be assembled near the site.

This is why experienced selection work starts with an access map, not a product brochure. Mark the harbor entrance, channel reaches, turning areas, berths, bridge clearances where relevant, launch point, pipeline corridor, service location, and disposal or placement route. Then add the controlling depth at each point and identify whether that depth changes with tide, maintenance condition, or vessel traffic. The shallowest point is important, but it is not always the controlling point. A narrow turn or a berth where a vessel must work side-on can be more restrictive than a short shallow reach.

Site surveys also need to be current enough for the decision being made. Harbor bottoms shift. Sediment can accumulate at corners, near breakwaters, around berth pockets, and at channel edges after weather events or vessel movements. Relying on an older survey for a tight-draft mobilization is a risky economy.

A Practical Selection Sequence

Before comparing manufacturers or configurations, define the operating envelope in plain terms. What depth is actually available during the planned work period? Is the job possible only at certain tides? Does the vessel need to travel while loaded? How close must it work to quay walls, fenders, piles, or navigation structures? What material is expected, and where will it go after removal?

From there, compare candidate vessels against the same conditions rather than against their best-case specifications. Request the relevant draft in practical states: light, normal operating, and any loaded or transport condition that applies to the proposed method. Ask how the dredger is positioned, how it relocates, what auxiliary craft are needed, and whether pipeline or discharge equipment changes the access requirement. A supplier should be able to explain these interactions clearly; vague assurances that a unit is “suitable for shallow water” are not enough for a constrained harbor.

It is also worth asking which design features are genuinely useful for the site. Shallow-draft pontoons, compact hull geometry, modular construction, adjustable spud systems, and a properly matched ladder can all help, but each introduces its own engineering and operating considerations. A lower-draft platform still requires adequate stability, structural strength, maintainable pump access, and reliable control of the dredging process.

Manufacturing Quality Matters More in Constrained Work

Draft-restricted work tends to expose equipment weaknesses quickly. Frequent positioning, repeated ladder movements, tight maneuvering, and difficult access for repair crews place practical demands on hull structure, weld quality, alignment, piping, electrical systems, and assembled mechanical components. A vessel that loses time because of preventable fit-up or system issues can be particularly disruptive when the tide or port traffic already limits the available working window.

That is why vessel selection should include a close look at how the dredger is built, not only what components are listed. Dingke dredger operates a modern heavy-duty manufacturing base with CNC cutting, high-precision welding, and automated assembly systems. Standardized workflows extending from initial steel cutting through final water testing help maintain consistency across the build. For a project team, the useful question is how that production discipline translates into the proposed vessel’s configuration, inspection process, maintainability, and readiness for the actual site conditions.

The right dredger for a harbor is rarely the largest machine available or the one with the lowest stated draft in isolation. It is the vessel whose real operating draft, dredging capability, maneuvering method, support spread, and construction quality all fit the project’s constraints. If those factors have not been reviewed together, the selection is still preliminary.
