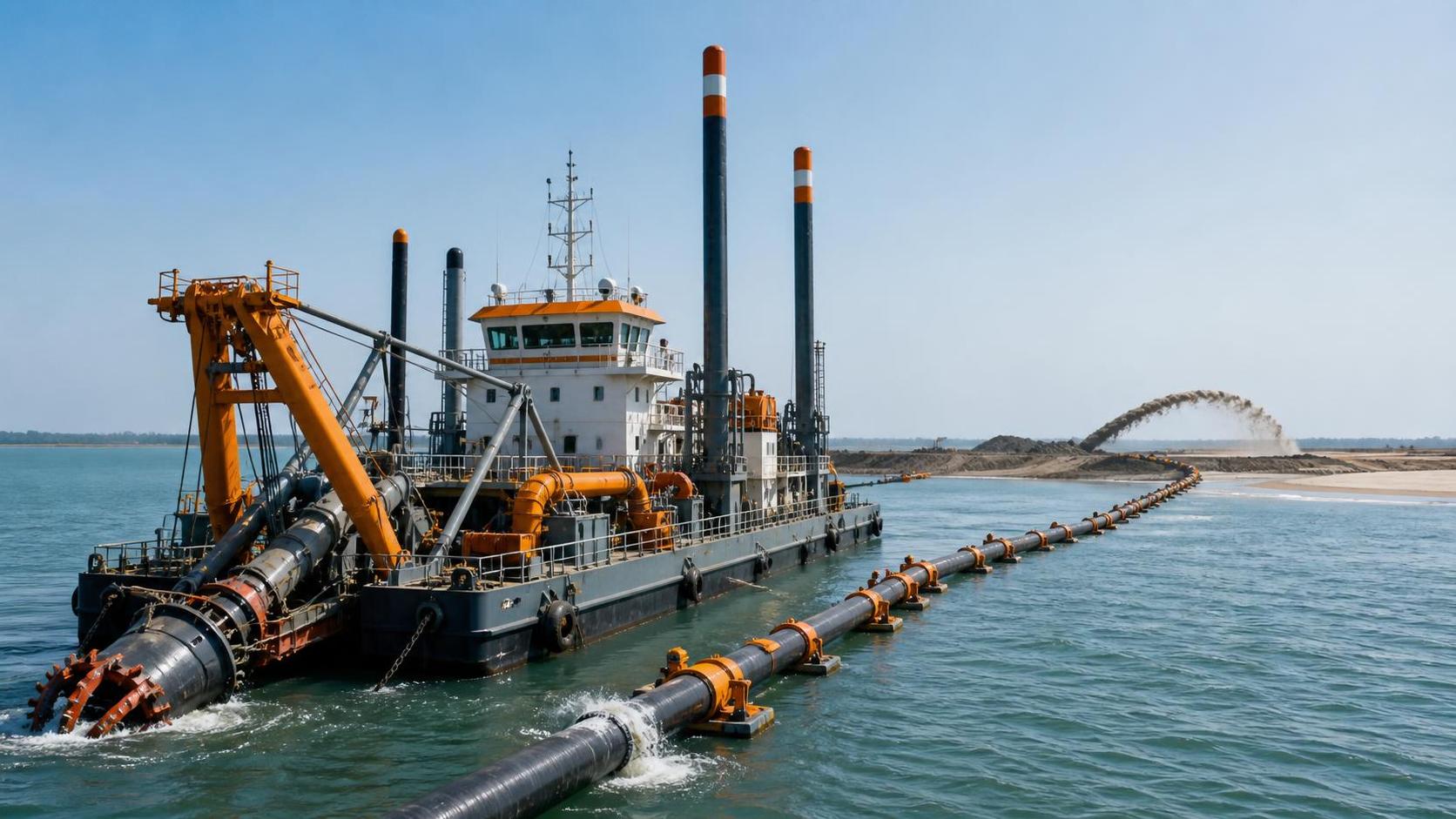

What pump capacity should a cutter suction dredger have?

The Short Answer: Capacity Must Match the Whole Dredging System

Selecting the right pump capacity for a Cutter Suction Dredger is not simply a matter of choosing the highest available flow rate. A pump that is too small may cause unstable slurry transport, pipeline blockage, low production, and excessive wear. A pump that is too large can waste engine power, accelerate abrasion, overload the pipeline, and operate far away from its best efficiency range.

For technical evaluators, the correct question is not “How many cubic metres per hour should the pump deliver?” It is: What flow and head must the complete dredging system sustain while transporting the expected material over the required distance and elevation?

That answer depends on the interaction between cutter production, sediment properties, suction conditions, discharge line geometry, pipeline diameter, booster arrangement, and the pump’s actual performance curve. A properly matched dredge pump gives the dredger a stable operating window rather than an impressive number on a specification sheet.

In practical terms, pump capacity should be selected to maintain the required slurry velocity, overcome total dynamic head, and achieve the target solids production rate without pushing the equipment into cavitation, excessive wear, or inefficient operation.

Separate Hydraulic Flow From Solids Production

One of the most common errors in Cutter Suction Dredger evaluation is treating pump flow as if it were identical to dredged material output. They are related, but they are not the same.

Pump flow rate is the total volume of slurry moving through the pump and pipeline. It includes water and solids. Solids production is the dry or in-situ volume of sediment actually removed and delivered. A dredger may pump a high slurry volume while achieving modest solids output if the mixture contains a large proportion of water. Conversely, trying to increase solids concentration beyond the pump and pipeline’s practical limit may reduce overall output through frequent interruptions, blockage risk, and higher wear.

For an initial estimate, the relationship can be expressed as:

Solids production = slurry flow rate × volumetric solids concentration

If a project requires a given hourly production rate, the evaluator must work backward. Determine the expected concentration for the material and dredging method, then calculate the slurry flow needed to carry that solids volume. This is why a capacity requirement stated only in cubic metres per hour is incomplete unless it clearly identifies whether it refers to slurry volume, in-situ excavation volume, or dry solids output.

Fine sand, medium sand, coarse sand, silt, clay, gravel-bearing material, and mixed overburden behave very differently in a pipeline. A flow rate that transports fine sand safely may be inadequate for coarser particles. A pump selection therefore begins with the material, not with a nominal dredger size.

Start With the Material Being Dredged

The cutter head breaks and loosens the soil, but the pump and pipeline must carry that material continuously after it enters the suction line. The sediment characteristics determine how demanding this transport duty will be.

• Particle size distribution: Coarse particles and gravel require higher transport velocity to avoid settling in the pipeline.
• Specific gravity: Heavier minerals increase slurry density and the head required from the pump.
• Concentration capability: Different materials can be dredged at different practical solids concentrations. Cohesive clay, for example, may be difficult to break down into a consistent pumpable mixture.
• Abrasiveness: Sharp sand, mineral-rich deposits, and gravel shorten the life of wetted components, especially when velocity or concentration is excessive.
• Cohesion and compaction: A compact clay layer or dense sand deposit may be limited by cutter power and excavation performance rather than pump capacity alone.

For transport design, engineers usually identify a minimum safe pipeline velocity, often called the critical or deposition velocity. Below this threshold, solids can settle, especially in horizontal sections, low points, bends, and shutdown-prone areas. The appropriate value must be based on the material and pipeline design; it should not be borrowed blindly from another project.

A useful evaluation principle is this: the pump should provide enough flow to stay safely above deposition velocity under normal operating conditions, while leaving reasonable margin for changing density, wear, and pipeline extension. Designing exactly at the minimum transport velocity leaves little room for reality.

The Capacity Calculation Has Two Sides: Flow and Head

A dredge pump is selected by its ability to produce a required flow rate at a required total dynamic head (TDH). Neither figure is meaningful in isolation. A pump may achieve a large flow at low head near the dredger, but deliver much less when a long discharge pipeline, elevation lift, or booster station is added.

Total dynamic head is normally built from several components:

• Static discharge lift between the dredger and the final discharge point
• Friction loss in the floating pipeline
• Friction loss in the shore pipeline
• Losses through bends, valves, reducers, manifolds, and other fittings
• Losses associated with slurry transport rather than clear-water flow
• Suction-side losses and operating conditions at the pump inlet
• Appropriate design allowance for wear, uncertainty, and future pipeline changes

The system is not fixed. As discharge distance increases, pipeline resistance rises. As pipe liners wear, internal diameter may change. As the dredger swings, floating hose geometry changes. As the soil changes, slurry density changes. The operating point moves continuously along the intersection of the pump curve and the system curve.

Technical reviews should therefore request pump performance curves, not just a single stated capacity. The curve should show head, efficiency, power demand, and preferably net positive suction head requirements across the intended operating range. The best selection generally places the normal duty point close to, but not necessarily exactly on, the pump’s best efficiency region. It must also retain usable margin on both the flow and head sides.

Discharge Distance Often Decides the Pump Size

Two dredgers working in the same sand can require very different pump arrangements if one discharges a short distance to a nearby reclamation area and the other pumps several kilometres inland. The first may operate efficiently with a single onboard pump. The second may need a larger main pump, a larger pipeline diameter, one or more booster pumps, or a different production strategy.

Increasing pump speed is not always the right response to a longer line. Higher speed can increase power draw, wear rate, and the risk of operating beyond a suitable duty point. It may also create excessive velocity in short-line operation. In many long-distance projects, a booster station is a more controlled solution because it shares the head duty across the system.

Booster sizing must be considered as part of a coordinated hydraulic design. The main pump, booster pump, pipeline diameter, discharge pressure ratings, and control logic need to work together. An isolated booster specification can be misleading if the main dredger cannot provide stable inlet conditions or if the pipeline has insufficient pressure capacity.

Evaluators should examine at least three pipeline scenarios:

1. Initial pipeline length: the expected duty during early project stages.
2. Maximum pipeline length: the most demanding planned discharge condition.
3. Transient or non-routine conditions: including startup, density changes, temporary rerouting, and controlled shutdown.

The maximum condition should not be treated as an afterthought. It often determines whether a nominally capable Cutter Suction Dredger can maintain production late in the project.

Pipeline Diameter Is Part of Pump Capacity Selection

A pump cannot be evaluated separately from its pipeline. A smaller pipe increases velocity and friction loss for a given flow. A larger pipe reduces friction, but if flow is too low, solids may settle. The right diameter allows the desired mixture flow to travel above deposition velocity without creating unnecessary head loss or extreme abrasion.

This relationship explains why “bigger pump” and “bigger pipe” do not automatically mean “higher production.” If the pipeline is oversized relative to the available flow, transport stability may suffer. If it is undersized, friction losses consume pump head and velocity may become damaging. The discharge pipe must also have pressure ratings compatible with the maximum operating and transient pressure expected from the pump system.

Do Not Ignore the Suction Side

Discharge performance receives much of the attention, but a dredge pump can only deliver what it receives. The suction line, pump location, dredging depth, cutter ladder geometry, and inlet conditions all influence the available suction head and the likelihood of cavitation.

Cavitation occurs when local pressure falls low enough for vapor bubbles to form and collapse inside the pump. In dredging service, it can cause noise, vibration, reduced output, pitting damage, and rapid deterioration of performance. Deep dredging, restrictive suction arrangements, high slurry density, excessive pump speed, and poor inlet geometry can all increase the risk.

When reviewing a proposed Cutter Suction Dredger, compare the available net positive suction head in the intended operating condition with the pump’s required NPSH. This comparison should account for expected water level, suction lift or submergence, line losses, temperature where relevant, and the slurry duty. Clear-water assumptions are not enough for a robust field assessment.

Match Cutter Power, Pump Power, and Engine Power

A cutter suction dredger is a production system, not merely a floating pump station. The cutter head must loosen material at a rate the pump can transport, and the pump must transport material at a rate the cutter can feed. If cutter power is insufficient for compact soil, the pump may run mostly water despite having ample hydraulic capacity. If excavation is strong but the pump or pipeline is restrictive, material can accumulate at the cutter head or force the operator to reduce cutting effort.

Power distribution also matters. The installed engine or electrical drive must cover pump demand, cutter demand, auxiliary equipment, hydraulic systems, winches, and a sensible operating reserve. Pump absorbed power rises with the operating point; a capacity claim should be checked against actual drive power at the required head and slurry condition, not only against a maximum engine rating.

This is especially important where variable-speed drives are used. Variable speed can provide valuable control over velocity and production, but it does not eliminate the limits imposed by available power, suction conditions, or pipeline pressure. A well-designed control system helps operators hold a stable density and avoid surging; it does not correct a fundamentally mismatched hydraulic design.

A Practical Evaluation Sequence

Rather than starting with a dredger’s nominal pipe diameter or installed power, technical evaluators can use a duty-based sequence.

1. Define the target production in clear terms: slurry flow, in-situ volume, dry solids, or delivered fill volume.
2. Characterize the material through available geotechnical data, particle sizing, density information, and expected variability.
3. Set the discharge route, including maximum distance, elevation profile, floating line, shore line, bends, valves, and discharge arrangement.
4. Establish the required transport velocity range for the expected material and pipeline diameter.
5. Calculate system head at the required slurry flow for both typical and maximum conditions.
6. Review pump curves, efficiency, absorbed power, NPSH requirement, and allowable operating range.
7. Check cutter capability and total installed power against the expected excavation and pumping duty.
8. Assess whether boosters, pipeline changes, or operational limits are required as the project develops.

This process turns pump selection from a catalogue comparison into a defensible engineering decision. It also reveals where project assumptions are weak. If material data are uncertain, the final design should preserve flexibility rather than pretending that a single exact capacity is known in advance.

Common Capacity Mistakes That Create Costly Field Problems

Choosing by dredger model alone. Two machines with similar cutter diameters may have very different pump curves, installed power, and suitable discharge distances. Model labels are not hydraulic calculations.

Using clear-water pump data as final slurry performance. Slurry is denser and more demanding than water. The pump’s operating duty must reflect the actual mixture.

Designing only for the average pipeline length. Production may look acceptable early on, then decline as the discharge point moves farther away.

Assuming maximum concentration is always desirable. Excessive concentration can make the system unstable, increase wear, and reduce the average daily delivered volume.

Ignoring wear allowance. Dredging is abrasive service. Impeller, liner, and pipeline condition affect performance over time. A system with no head or power margin may fail to meet duty well before a maintenance interval is reached.

Leaving controls out of the discussion. Pressure, flow, density, pump speed, and engine load monitoring give operators the information needed to maintain a stable operating point. Capacity on paper has limited value if the machine cannot be controlled reliably in changing ground conditions.

What a Credible Pump Capacity Proposal Should Include

A manufacturer or supplier should be able to explain the stated capacity in relation to defined operating conditions. At a minimum, the technical package should identify the pump model and speed range, flow and head curves, expected efficiency range, power demand, suction conditions, discharge pipeline assumptions, material assumptions, and any booster-pump requirement.

It should also distinguish between maximum theoretical capacity and sustainable project capacity. The latter is usually more valuable to a project team because it reflects transport constraints, material variability, maintenance, and realistic operating margins.

At Dingke dredger, this engineering review should continue beyond the hydraulic calculation. Manufacturing quality influences whether the designed capacity can be maintained in service. Controlled steel fabrication, accurate alignment of pump and drive components, high-precision welding, and final water testing all contribute to predictable installation and operation. A modern heavy-duty manufacturing process cannot replace proper pump sizing, but it supports the reliability of the system selected for the duty.

The Right Capacity Is a Stable Operating Window

The best pump capacity for a Cutter Suction Dredger is rarely the largest number in a brochure. It is the capacity that keeps slurry moving safely, meets the required delivery rate, works efficiently across the expected discharge range, and leaves room for changing material and normal wear.

For a short-distance sand project, that may mean a single pump with moderate head and a carefully matched pipeline. For deep excavation, dense material, high lift, or long-distance reclamation, the answer may be a higher-head main pump combined with booster support and more detailed control of density and pressure.

Before approving a dredger, technical evaluators should ask for the duty point—not just the headline flow rate. When flow, head, solids concentration, pipeline velocity, suction conditions, and installed power are considered together, pump capacity becomes a measurable engineering decision rather than a hopeful estimate.
